PAINT ARRESTOR MEDIA

Progressive density Glass Fibre filter media, class G2 according to EN 779:2012 (65% ≤ Am < 80%).

APPLICATIONS

Filtration of air borne particles in Civil, Industrial Air Conditioning systems and Spray Booth Extract Systems.
It is commonly also used as pre-filtration stage before the fine dust filters.

OPERATING RANGE

Maximum temperature: 300°C (Continuous operation 210°C)
Maximum relative humidity: 100%
Recommended final pressure drop: 250 Pa

FILTER MEDIA

These characteristics provide in-depth filtration without surface loading.
High dust holding capacity, with minimum resistance to air flow.
The high compressive strength ensures stability and rigidity.
Flame resistance class F1 (Din 53438)
Available in rolls, panels and roll filters.

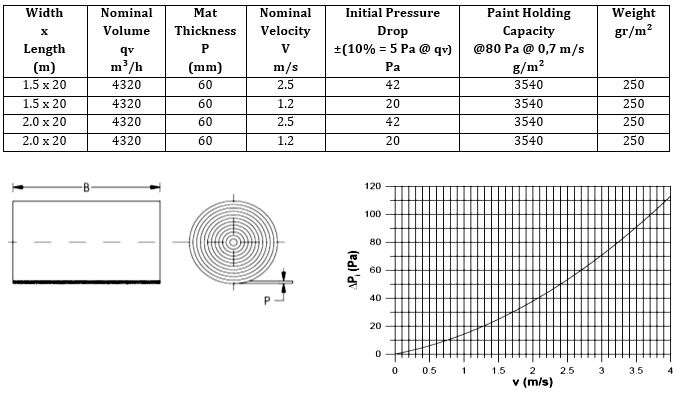

TECHNICAL INFORMATION

DISPOSAL

Partially regenerable. F
Used filters may be disposed of in authorised landfill.

CONSTRUCTION

Continuous monofilaments glass fibres are build up to create a matrix with a progressive density, having an open structure on the air inlet face and a firm laminate backing on the air exit side.
