WASHABLE SELF SUPPORT PANEL FILTER

Manufactured in South Africa, the Filtaire S.A. cc Washable Self Support Primary Panel Filter, class Merv 8, according to ASHRAE Standard 52.2-2007, equivalent to the class G4 to EN 779:2002 (30% ≤ Em < 35%).

Manufactured from a polyester non-woven fine filament that is mechanically pleated and heat set to form a consistent uniform pleat.
The pack is bonded into a rolled-back channel with medium density polyurethane, ensuring maximum strength under high resistance and eliminating the possibility of bypass leakage.

• Non-standard sizes available
• EN779 Classification: G4
• ASHRAE 52.2/76 Arrestance: 92%
• Dust holding Capacity per m²: 420g
• Recommended Face Velocity: 2.5 m/s

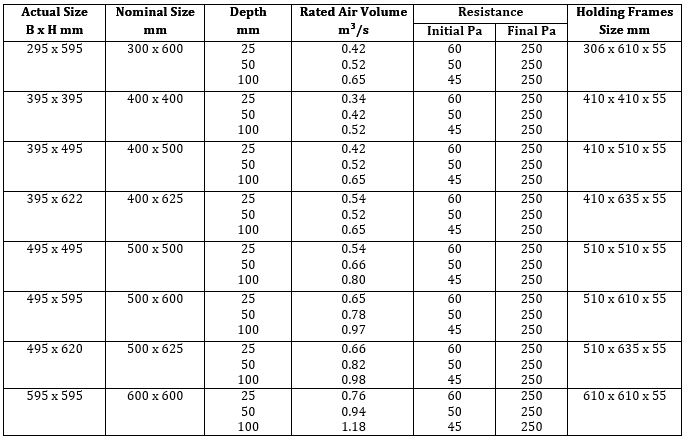

TECHNICAL INFORMATION

Polyester media is a non-woven, non-migrating, synthetic material with ASHRAE dust arrestance to 92%. Advanced technology manufacturing equipment is used to produce a media of high quality, uniformity and excellent filtering performance.
